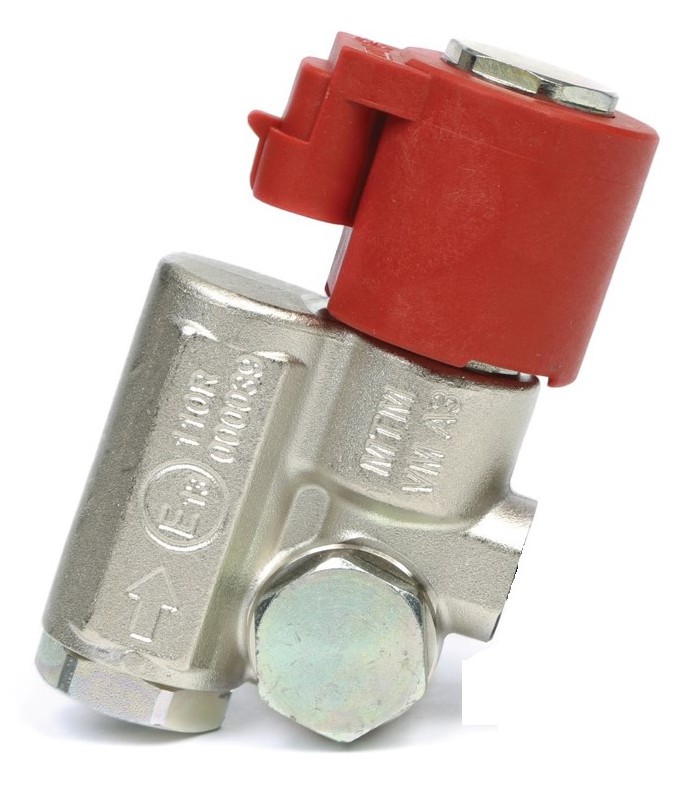

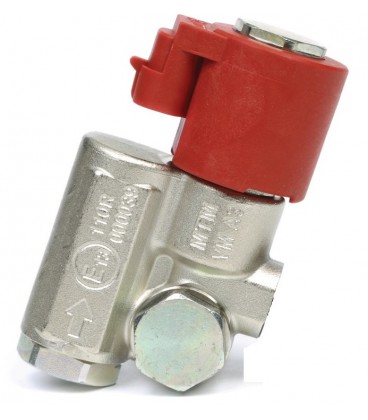

CNG solenoid valve VM3/E-BJ (Banjo)

CNG solenoid valve VM3/E-BJ (Banjo)

E160M5026C

Related Products


More info

The on-off solenoid valve controlling the flow of CNG coming from the bottle and going to the regulator is compact-sized, takes up very little space and will stop the NG flow during petrol-fuelled operation and while the engine is off.


Data Sheet
TECHNICAL DATA SHEET
- Max working pressure: 260 bar
- Working temperature : -40 +120 °C
- Agreement: ECE R110 – ISO15500		Solenoid
valve		Inlet pipe
connection		Outlet pipe
connection		External
connection
12V12VG” 1/2
female		G” 1/2



Codice/CodeDescrizione/Description
800E160M5026

CNG VM3/E-BJ connessione sensore 1/4 gas

CNG VM3/E-BJ with sensor connectio 1/4 gas

800E160M0056

CNG VM3/E-BJ connessione sensore M12X1

CNG VM3/E-BJ with sensor connectio M12x1
