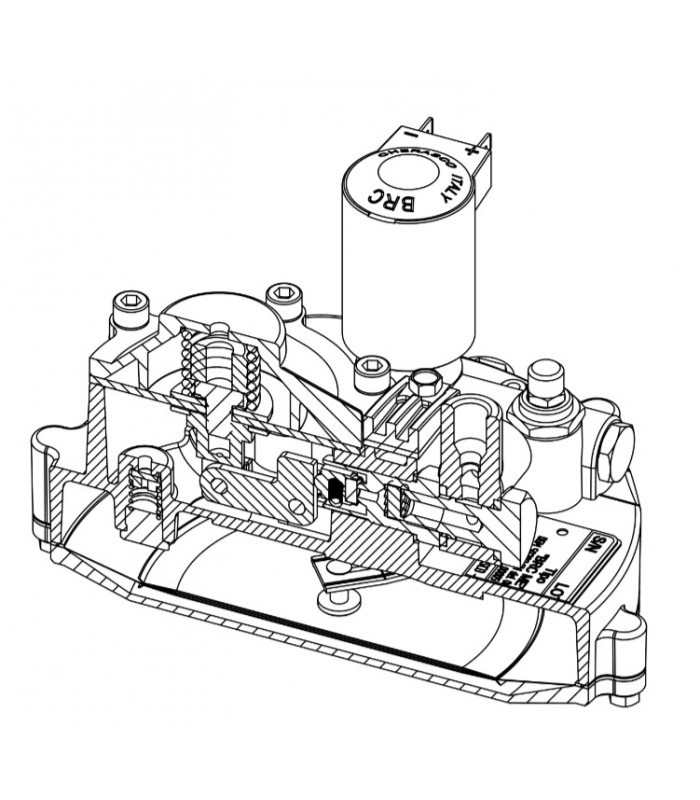

CNG Eletronic ME Reducer
Code, Power Max and Regulation pressure:
E010M0101 Small Reducer Up To 70 Kw (95 Hp) - 0.7 bar
E010M0102 Medium Reducer Up To 100 Kw (136 Hp) - 0.7 bar E010M0103 Super Reducer Up To 140 Kw (190 Hp) - 0.7 bar
Related Products
Adressed to convert injection vehicles with traditional systems, it’s only available in the “OT” grass elbows version. To prevent freezing after sudden gas expansion, the regulator is heated by using water from the engine cooling circuit. The gas flow necessary to ensure engine idling is adjustable via a gas port separate from the main gas flow. Inclusive of an electronic starter device with a built-in safety system which operates by shutting off the gas solenoid valve at every (wanted or unwanted) engine stop. All the NG regulators are homologated according to the EEC directives 10R- 00, ISO15500, 10R-02 (Electromagnetic compatibility).
| TECHNICAL DATA SHEET | |
| ITEM | DETAIL |
| Working Pressure | 260 bar |
| Number of Stages | 3 |
| First Stage regulation pressure | 3 bar |
| Second Stage regulation pressure | 0.7 Bar |
| Inlet gas fitting | M12 x 1 |
| Outlet gas fitting | Rubber hose Ø 17 mm |
| Water Coolant Port | Rubber hose Ø 8 mm |
| Coil Power | 14 W |
| Alimentation | 12v ±15% |
| T range | -40/ +120° C |
| Agreement | 110R-00 / ISO15500 |
