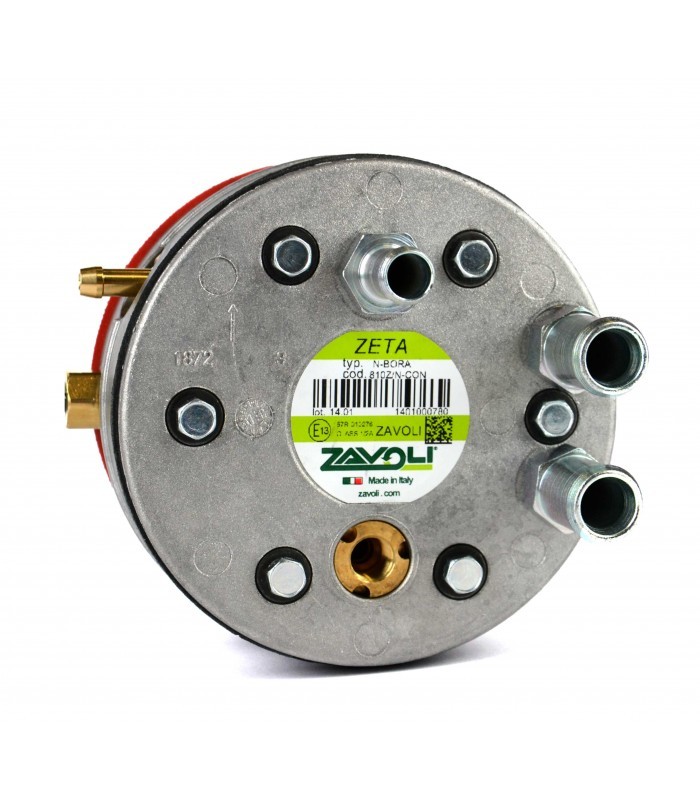

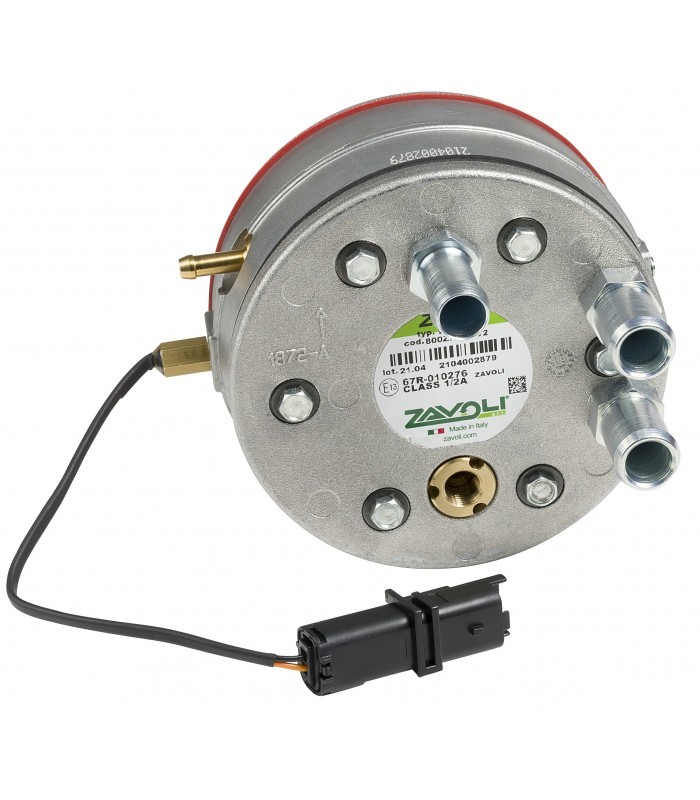

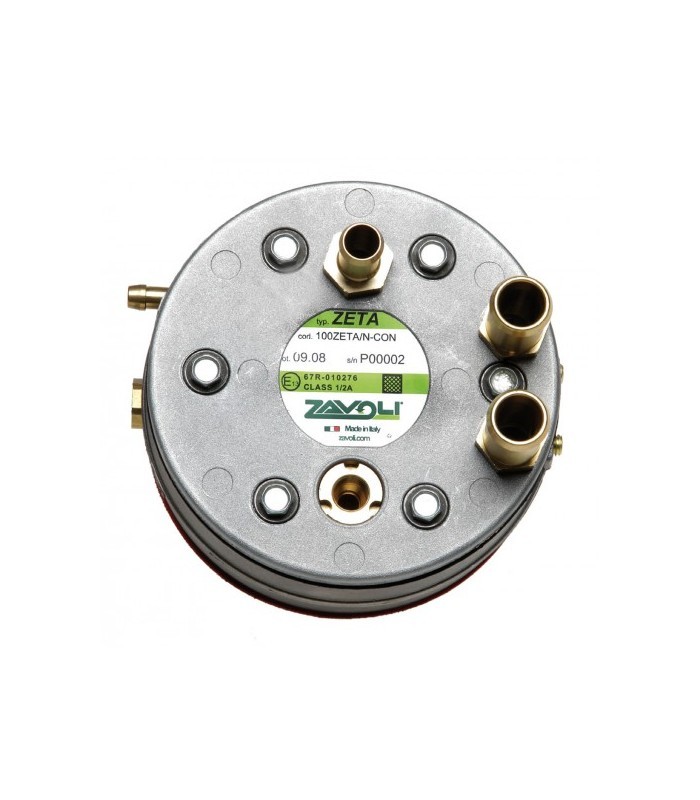

ZETA Super Reducer

ZETA Super Reducer

01RD00503514

Code, Power Max and Regulation pressure:

01RD00503514 (800ZETA/S)    Up to 250 Kw (340 Hp) - 1.4 bar

More details

Related Products


More info

Positive pressure single stage diaphragm type vaporizer-regulator, compensated with watergas heat exchanger and internal overpressure valve. Available in two different versions, ZETA N (standard) and ZETA S (super). Extremely compact, with limited overall dimensions.

All the LPG regulators are homologated according to the EEC directives 67R-01.


Data Sheet
TECHNICAL DATA SHEET
ITEMDETAIL
Working Pressure45 bar
Outlet gas Pressure1.4 bar
Number of Stages1
Inlet gas fittingM12 x 1
Outlet gas fittingRubber hose Ø 12 mm
Water Coolant PortRubber hose Ø 16 mm
MAP PortRubber hose Ø 5 mm
T range-20/ +120° C
Agreement67R-01
