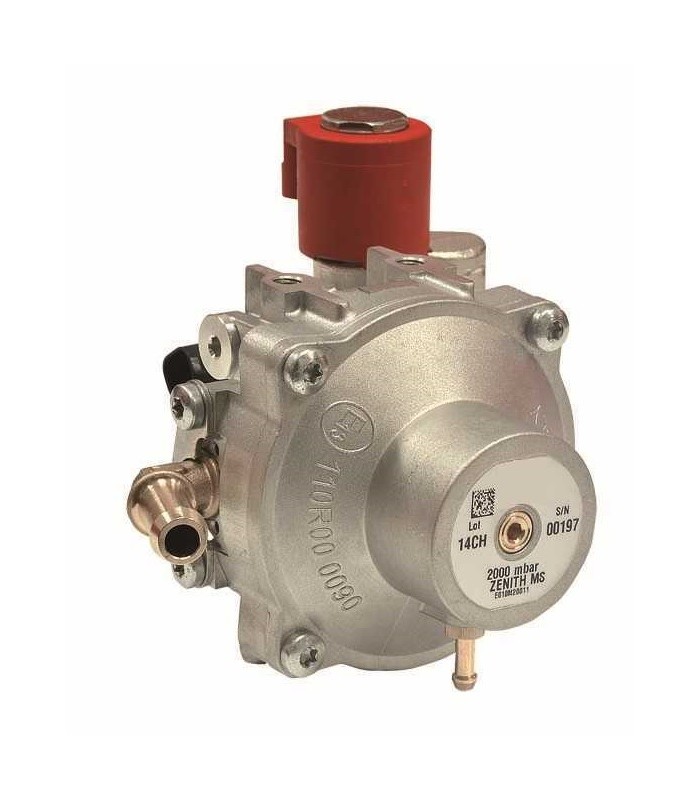

Zenith MS reducers

E010M20021

Code, Power Max and Regulation pressure:

E010M2021    Up to 90 Kw (120 Hp) - 1.9/2.0 bar

More details


More info

This is a revolutionary single-stage CNG reducer that keeps the pressure supply stable by using the incoming pressure of gas in order to increase or decrease the applied force of the gas. The result is a perfectly stable reducer that does not get affected by the influence of the pressure fed. Its main characteristics are that it is very compact and takes little space, it is gives stable pressure supply and therefore it has a high performance capacity.


Data Sheet

ITEMDETAIL
Working Pressure260 bar
Outlet gas Pressure2.0 bar
Number of Stages1
Inlet gas fittingM12 x 1
Outlet gas fittingRubber hose Ø 12 mm
Water Coolant PortRubber hose Ø 8 mm
MAP PortRubber hose Ø 5 mm
T range-40/ +120° C
Agreement110R-00 / ISO15500
PowerVersion up to 90 Kw
