ZETA Normal Reducers

ZETA Normal Reducers

01RD00503515

Code, Power Max and Regulation pressure:

01RD00503515 (800ZETA/N)    Up to 135 Kw (183 Hp) - 1.2 bar

More details

Related Products


More info

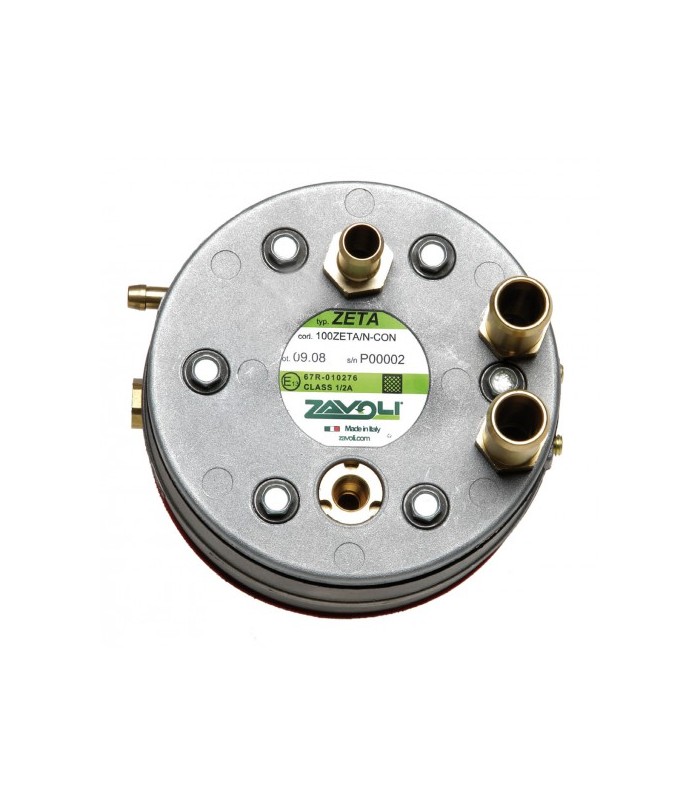

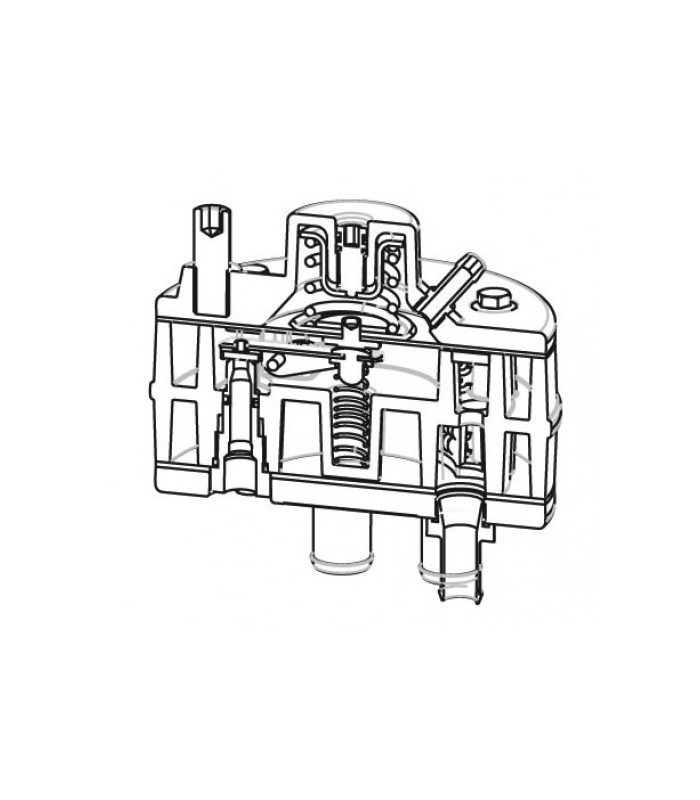

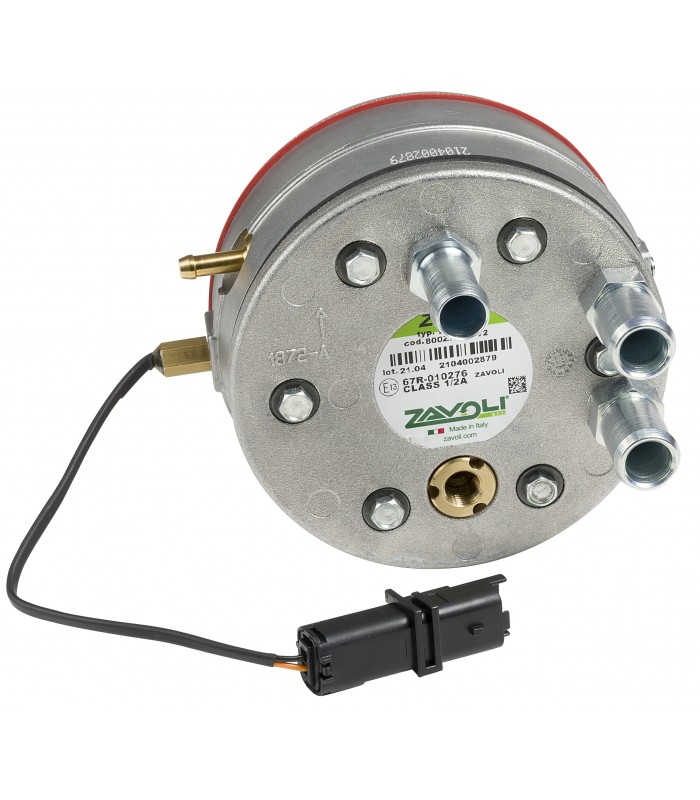

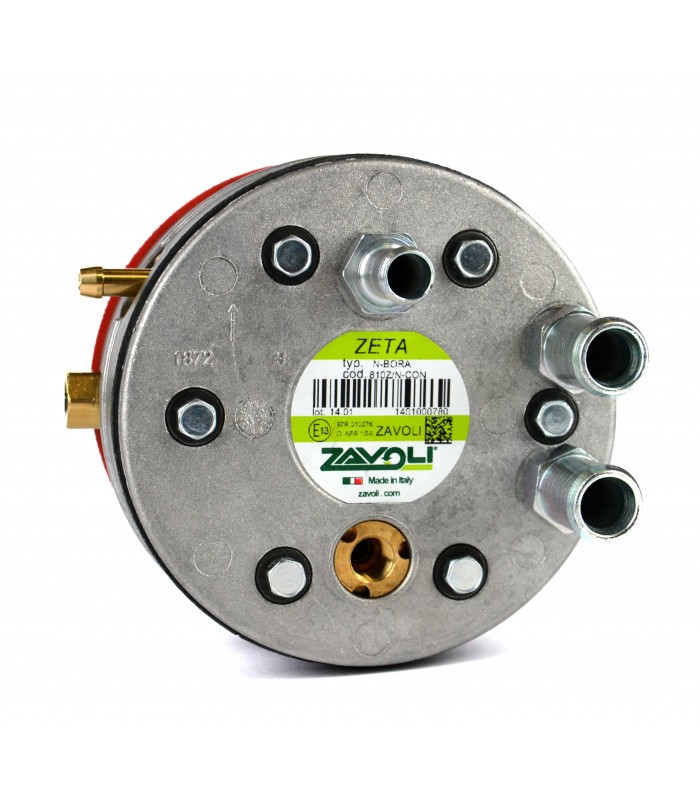

Positive pressure single stage diaphragm type vaporizer-regulator, compensated with watergas heat exchanger and internal overpressure valve. Available in two different versions, ZETA N (standard) and ZETA S (super). Extremely compact, with limited overall dimensions.

All the LPG regulators are homologated according to the EEC directives 67R-01.


Data Sheet
TECHNICAL DATA SHEET
ITEMDETAIL
Working Pressure45 bar
Outlet gas Pressure1.2 bar
Number of Stages1
Inlet gas fittingM12 x 1
Outlet gas fittingRubber hose Ø 12 mm
Water Coolant PortRubber hose Ø 16 mm
MAP PortRubber hose Ø 5 mm
T range-20/ +120° C
Agreement67R-01
