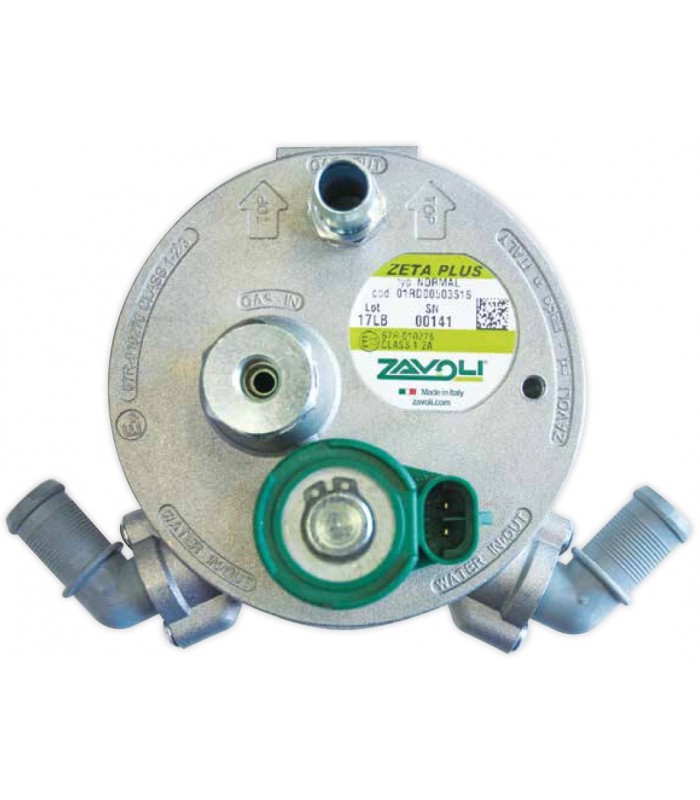

Zeta Plus Reducers
Code, Power Max and Regulation pressure:
01RD00503516 (820Z.PLUS/N) Up to 120 Kw (163 Hp) - 1.2 bar
01RD00503517 (820Z.PLUS/S) Up to 200 KW (272 Hp) - 1.4 bar

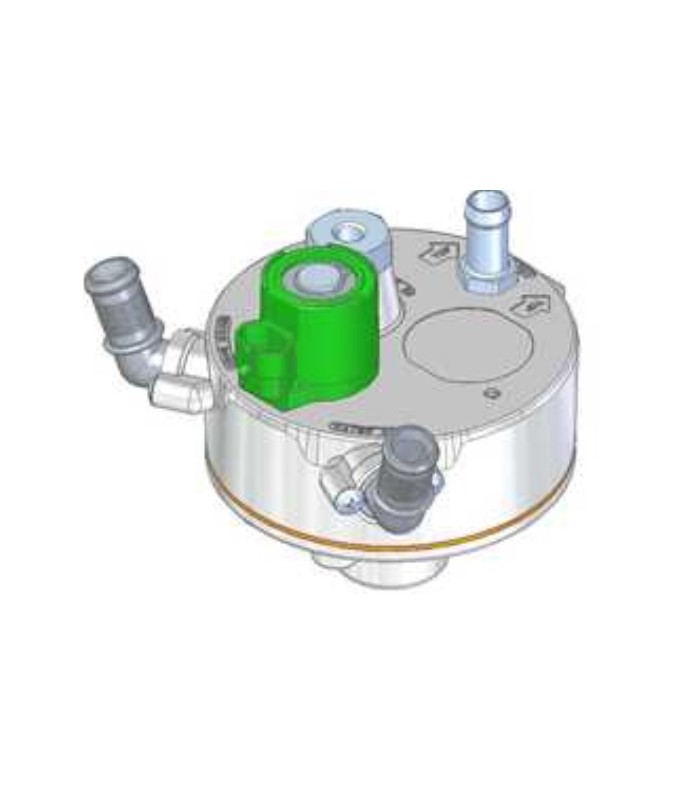

The new ZETA PLUS lpg regulator for sequential injection systems is able to satisfy the most sophisticated market needs, keeping its installation the easiest possible and combining appealing design with high performances. The ZETA PLUS regulator has been engineered to obtain the most flexible regulator ever, in terms of variety of vehicles and installation options. Its production process is completely automated, thus ensuring large volumes and high accuracy and quality. Multiple, strict tests at the end of the production process guarantee the regulator reliability and performances.

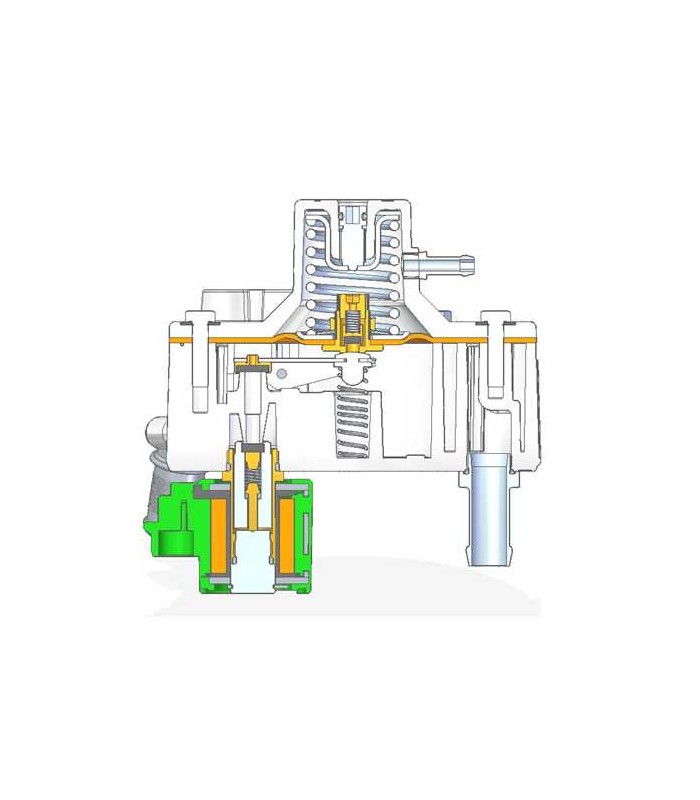

The revolutionary ZETA PLUS regulator, a single stage regulator with membrane mechanism with positive pressure and compensated though a gas-water heating exchange system, is the latest regulator developed by ZAVOLI. It features a very compact design, and so it requires very limited space for its installation.

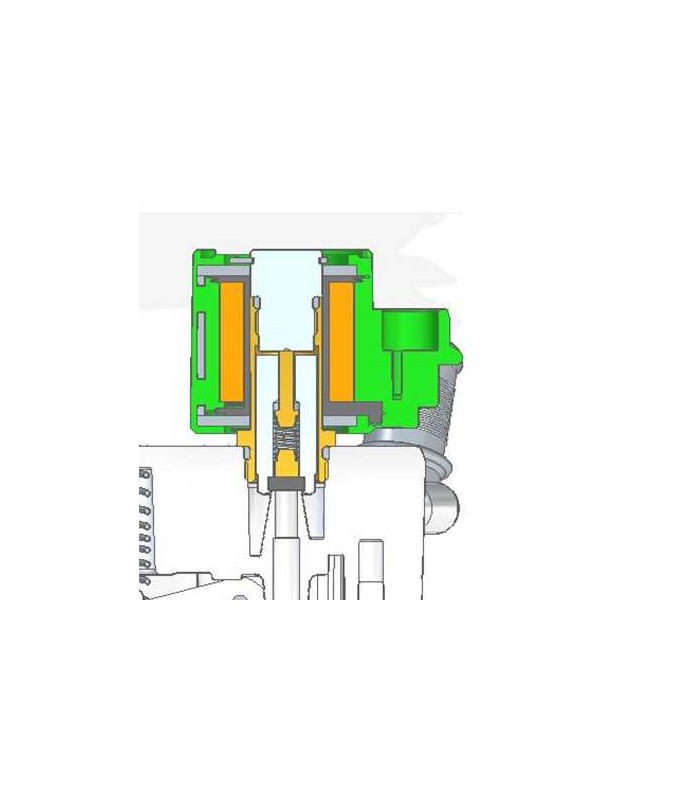

Additionally, the ZETA PLUS regulator features an integrated solenoid valve (cut-off valve) and a high performance filter, and it’s available in a Normal and a Super version.
The regulator is fully R67-01 homologated.
| TECHNICAL DATA SHEET | |
| ITEM | DETAIL |
| Working Pressure | 45 bar |
| Outlet gas Pressure | 1.2 bar |
| Number of Stages | 1 |
| Inlet gas fitting | M12 x 1 |
| Outlet gas fitting | Rubber hose Ø 12 mm |
| Water Coolant Port | Rubber hose Ø 16 mm |
| MAP Port | Rubber hose Ø 5 mm |
| Coil Power | 14 W |
| Alimentation | 12v ± 15% |
| T range | -20/ +120° C |
| Agreement | 67R-01/10R-03 |
