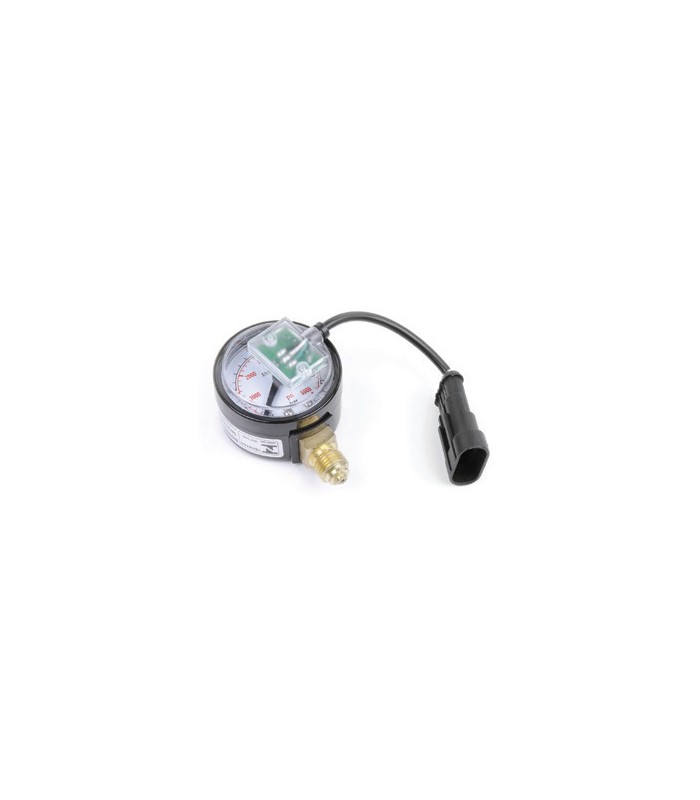

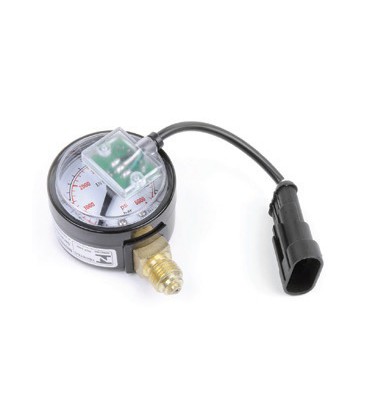

CNG HP pressure optical level sensor

18CE20000003

More info

CNG HP pressure level sensor integrated with connector and installed onto the Solenoid Valve VMA3/E-Banjo.
This sensor sends input to the gas ECU that consequently shows the gas level through the green LEDs of One-Touch changeover switch.


Data Sheet
TECHNICAL DATA SHEET
ITEMDETAIL
Operating Temperature
-40°C ÷ 120°C
Working Pressure0,2 ÷ 260 bar
Working Voltage0,2 ÷ 10 V
ConnectorTyco Superseal 3 ways
Weigh32 g
FixingM12
OmologazioneR110
