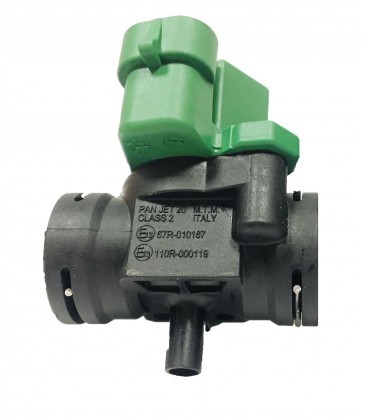

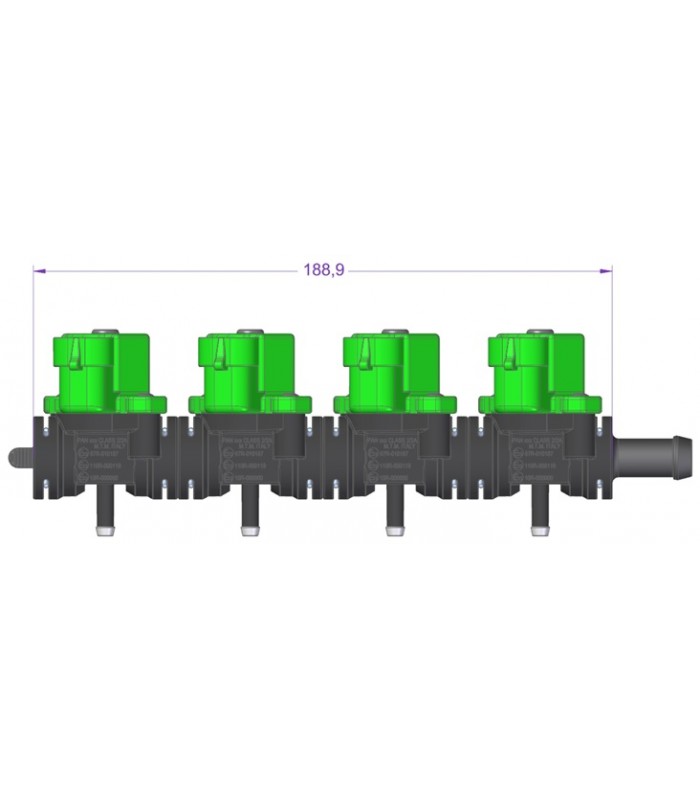

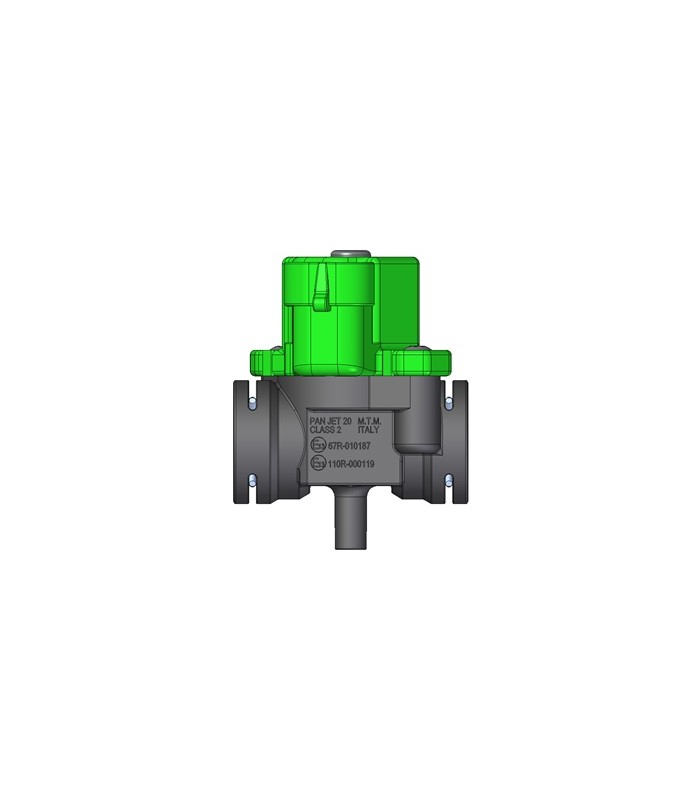

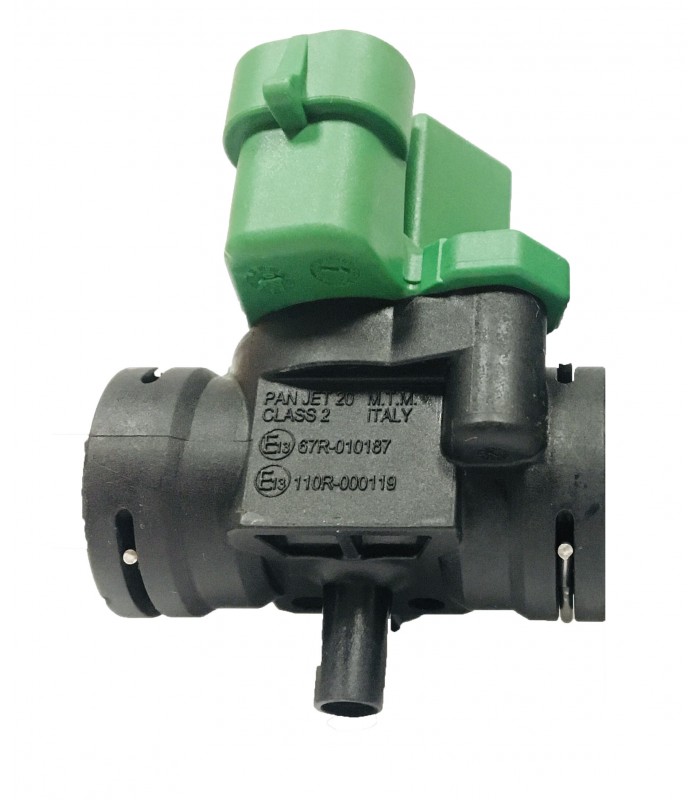

Pan JET20 Injectors
09SQ12000030

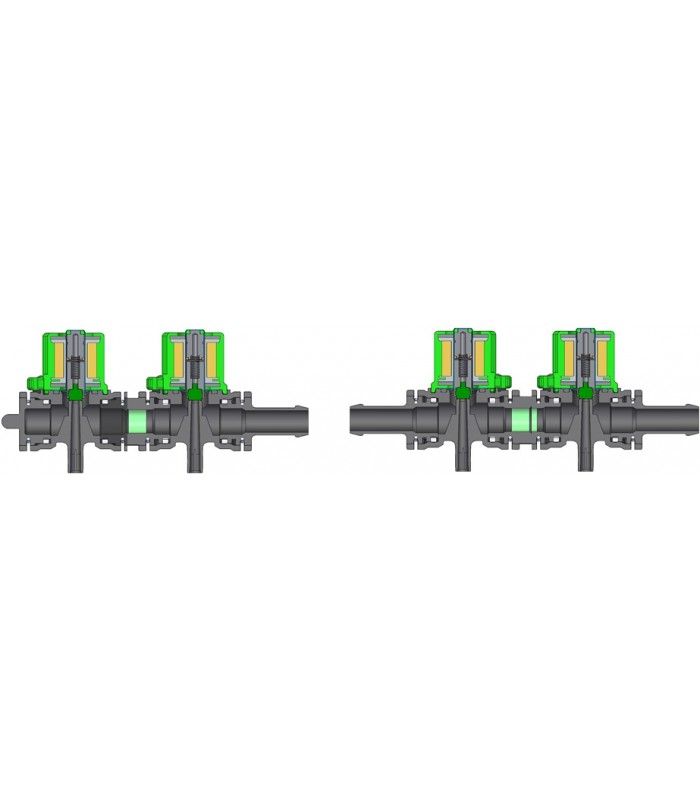

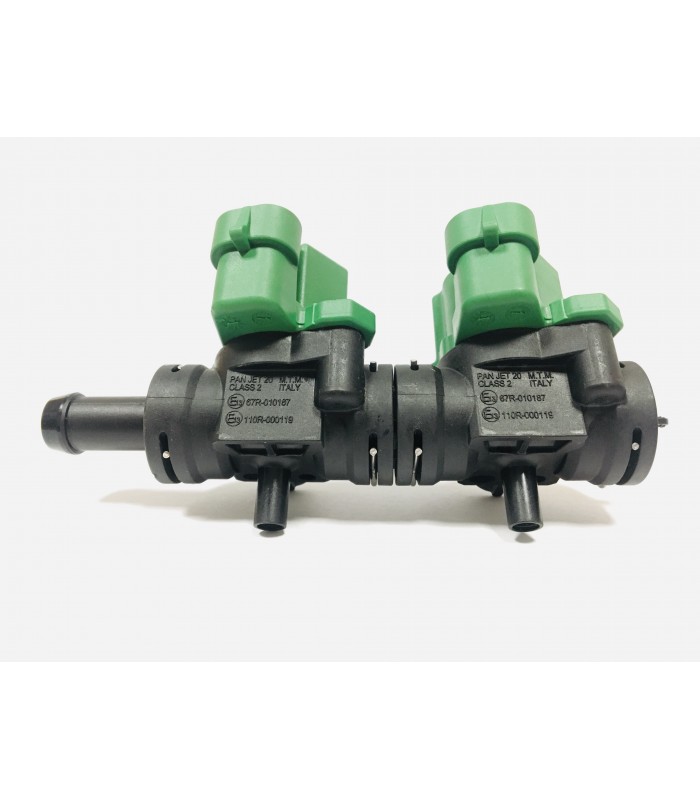

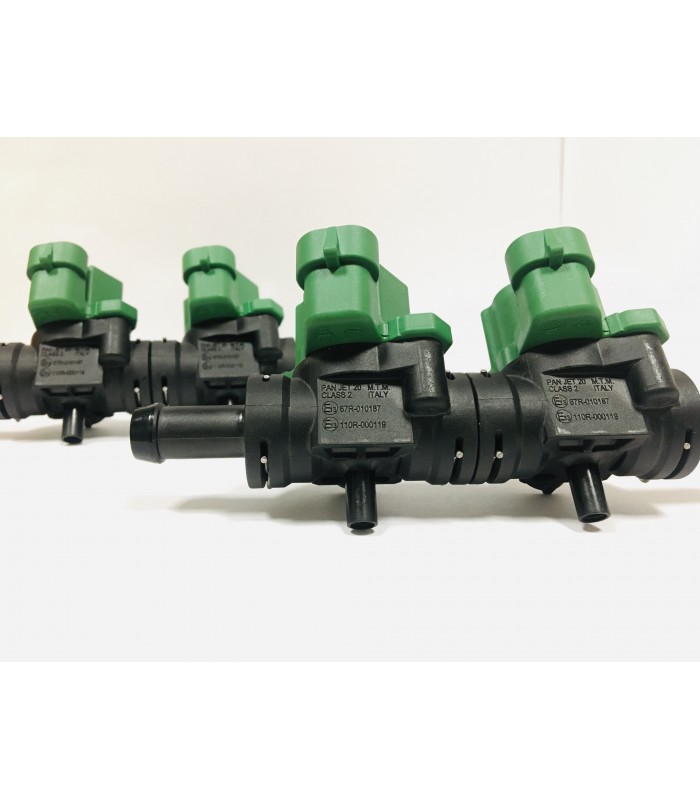

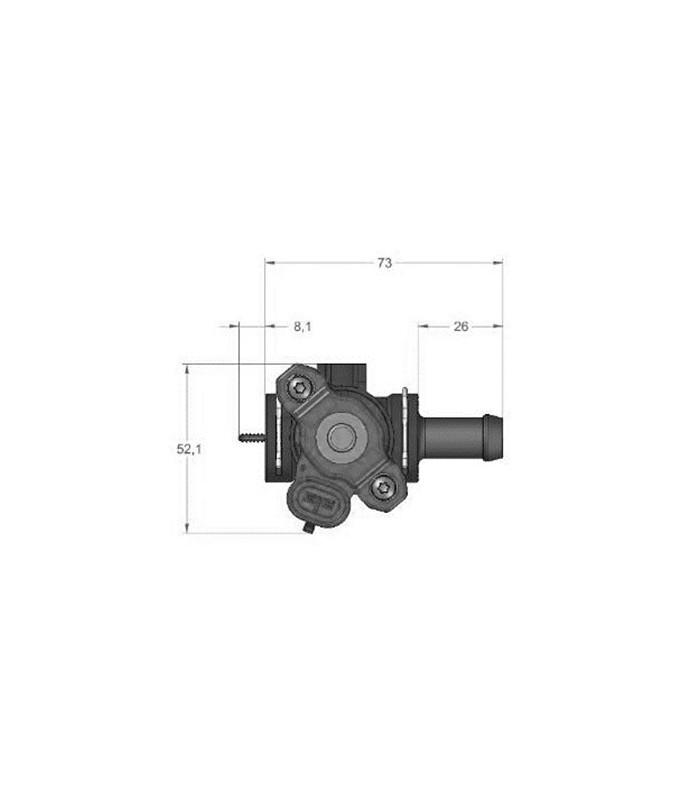

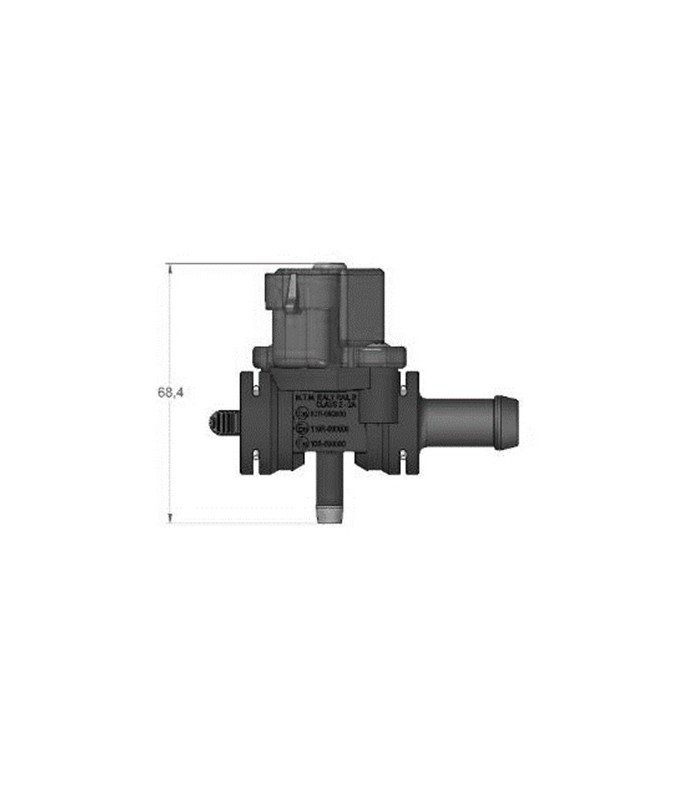

| PAN JET20 INECTORS | |
| Fuel | LPG - CNG |
| Injectors Type | Normaly Closed, Bottom Feed, Low Resistance, Peak & Hold Driving Strategy |
| Homologations | 110R-000119 (CNG) - 67R-010187 (GPL) 10R-051139 |
| Injector Layout | 8-6-5-4-3 Cylinders (Different Assembly Kits) |
| Injector Rail | Plastic |
| Electrical Connection | AMP SuperSeal 1.5 Connector |
| Gas Inlet | Rubber Diameter 12 mm |
| Gas Outlet | Rubber Diameter 6 mm |
| Spare Parts | Nozzles: 1,50 - 1,75 - 2,00 - 2,50 - 3,50 mm Plug – Sensor Fitting – Pipe Holder 90° |
| Weight | 102 g (single injector) |
| TECHNICAL DATA SHEET | |
| ITEM | DETAIL |
| Resistance a 20°C | 1,75 ± 5% Ω |
| Inductance a 100Hz | 4,4 mH |
| Maximum Working Delta Pressure | 4,0 barg |
| Operating Voltage Range | 8 ÷ 16 V |
| Approval Temperature Range LPG | -20 to 120°C |
| Approval Temperature Range CNG | -40 to 120°C |
| Operating Temperature Range | -20 to 120°C |
| External Leakage (100% Control During Production) a 20°C, Medium AIR | < 15 cc/h @ 0,9 ± 0,1 barg and 2,0 ± 0,1 barg |
| Stroke | 0,5 mm |
| Opening Time a 13,5 V, 20°C (Statistical Control) No Nozzle | 2,1 ± 0,2 @ 2,0 barg, 4,0 ms (No Nozzle) |
| Dynamic Air flow Rate a 20°C (100% Control During Production) No Nozzle | 840 ± 7% Nl/h @ 2,0 barg, 4,0 ms, 13,5 V, 40 ms (Period) |
| Static Air Flow Rate a 20°C (Statistical Control with LAB Test) No Nozzle | 11.000 Nl/h @ 2,0 barg, 13,5 V |
| Linearity* | ± 7% relative to theoretical linear characteristic from 3,0 ms of injection time |
| Peak Current | 4,6 A |
| Hold Current | Min 1.55 A |
| Reliability** | 600 million cycles |
*Linearity is calculated considering the percentage difference between the measured injector flow rate characteristic and the theoretical injector flow rate characteristic by linear regression.
**Based on Lab test in air.
