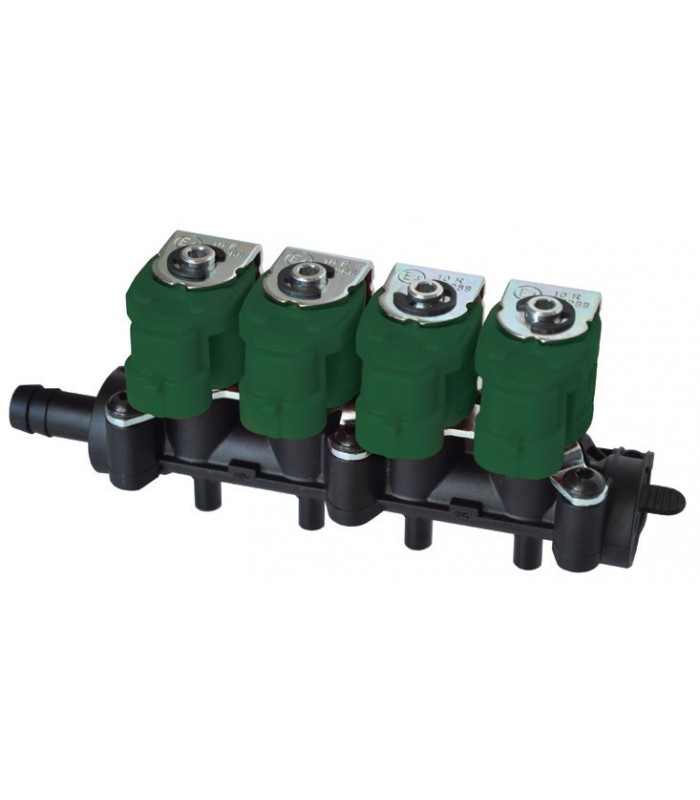

Injectors Rail 4 Cylinders "TYPE 37"

VK37.EVG.12

Code                    Description

VK37.EVG.121 R01 Injectors TYPE 37 4 Cylinders (ZV.INJ037)
VK37.EVG.122 R01 Injectors TYPE 37 3 Cylinders (ZV.INJ037/3C)
VK37.EVG.123 R01 Injectors TYPE 37 2 Cylinders (ZV.INJ037/2C)

More details


More info

The  injector Rail "TYPE 37" has been designed to turn the gas flow coming from the Regulator on and off


Download

Data Sheet
TECHNICAL DATA SHEET
ITEMDETAIL
MaterialPlastic Polymer
Max Working Pressure4,5 bar
Operating Temperature- 40 °C + 120 °C
Weight0,4 Kg
Minimum Opening Time2.7 ms
Closing Time1.8 ms
Coil Resistence2 Ohm
Inlet Gas FittingØ 12 mm
Agreement67R-01 / 110R-00 / R10
