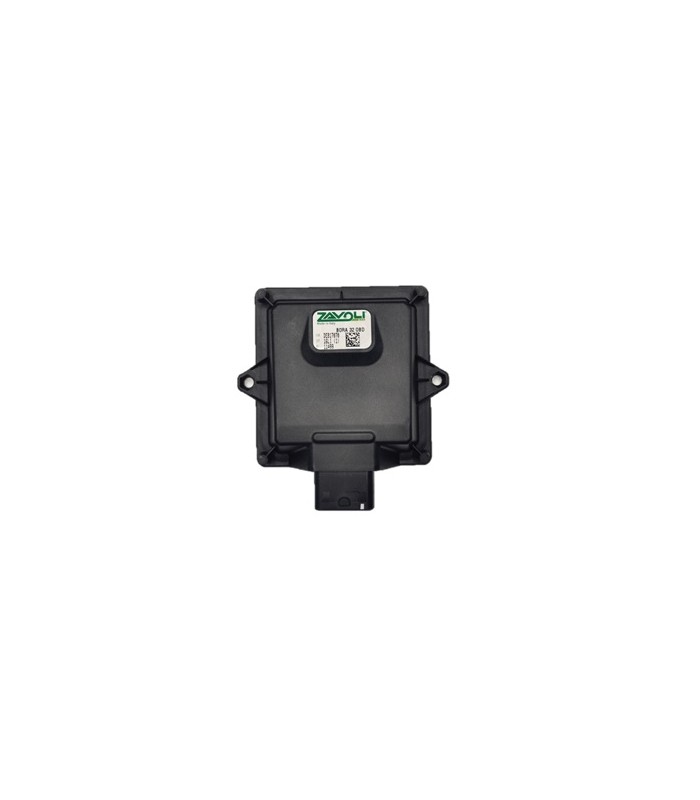

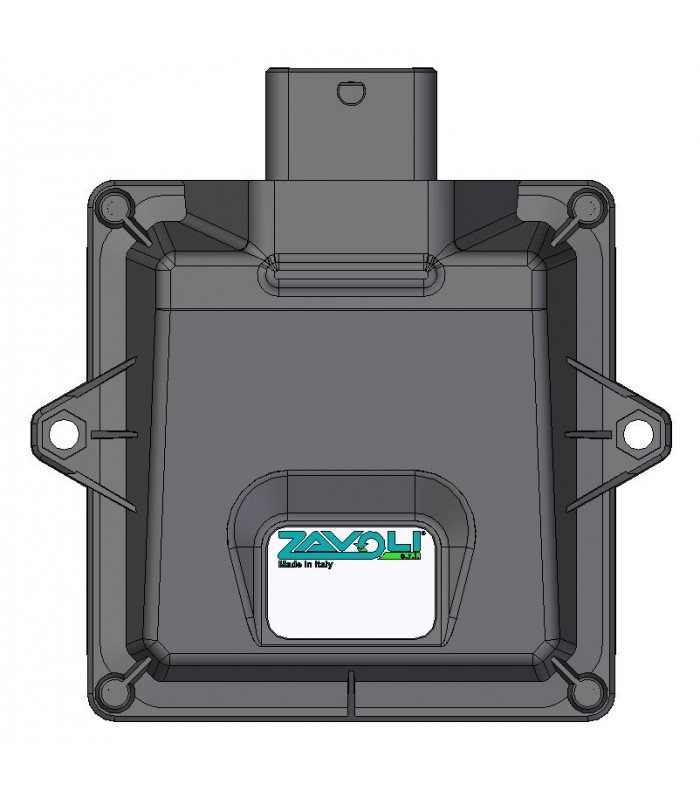

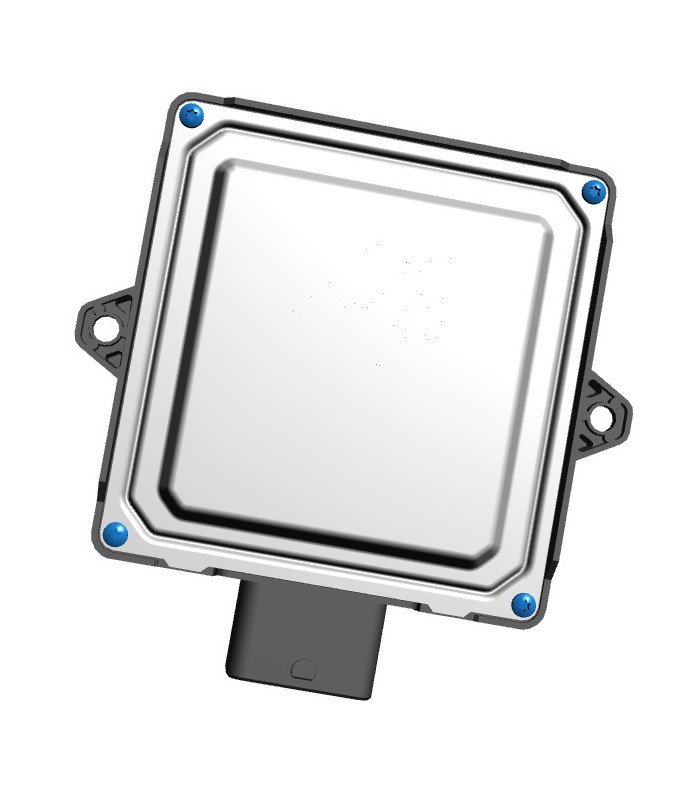

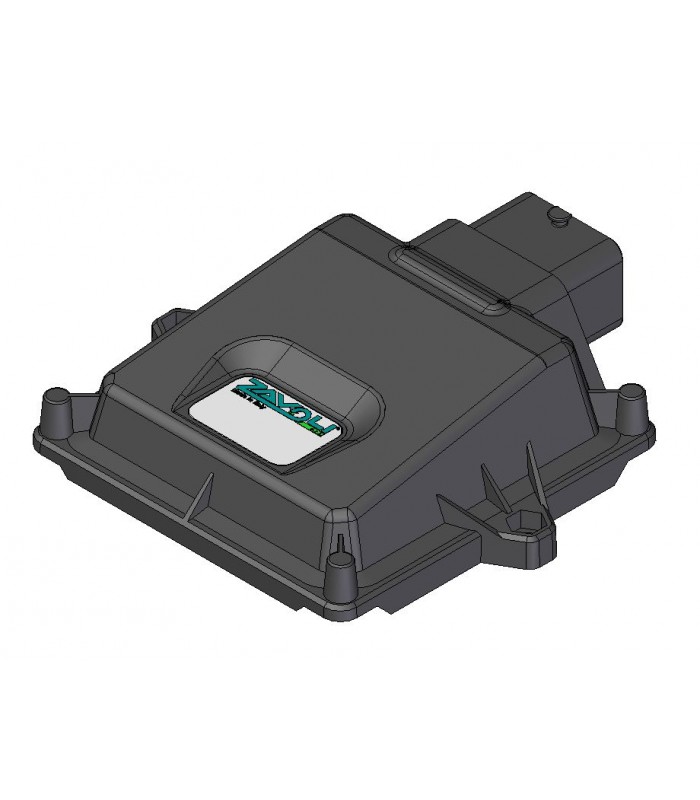

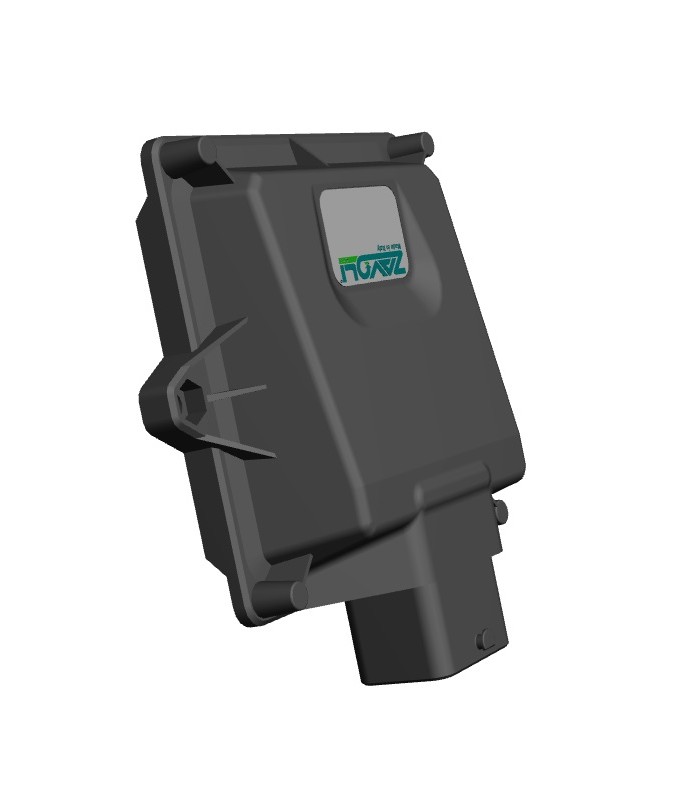

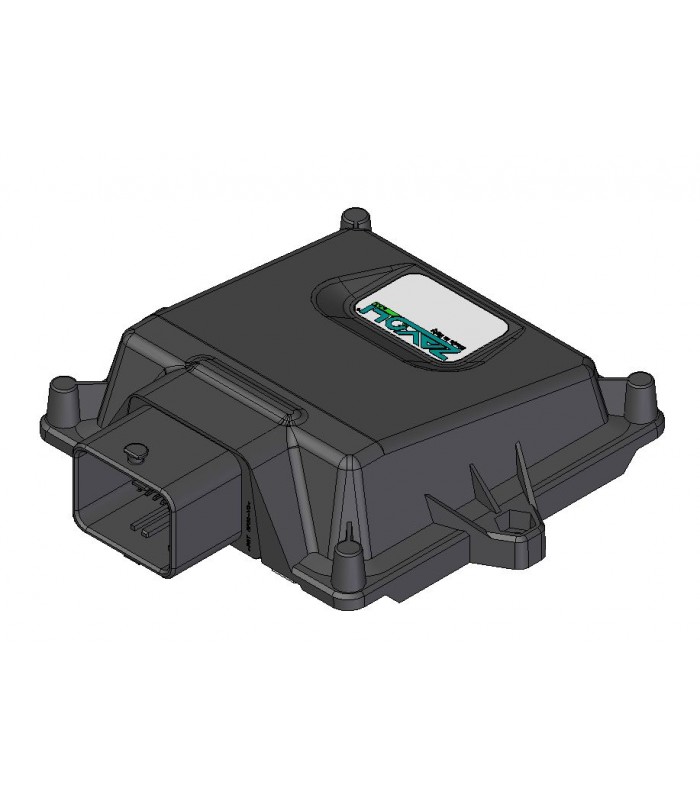

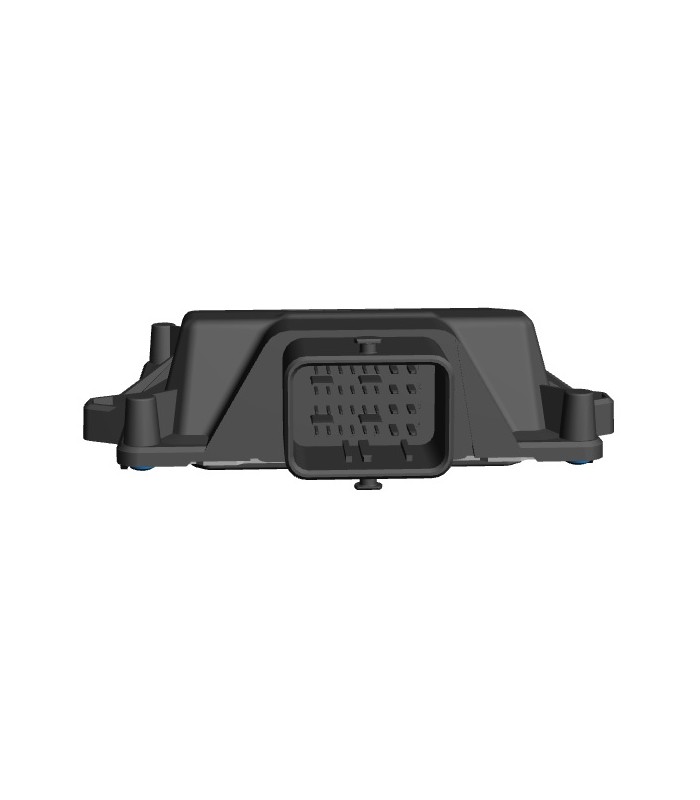

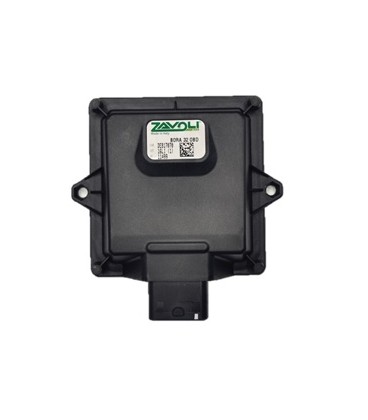

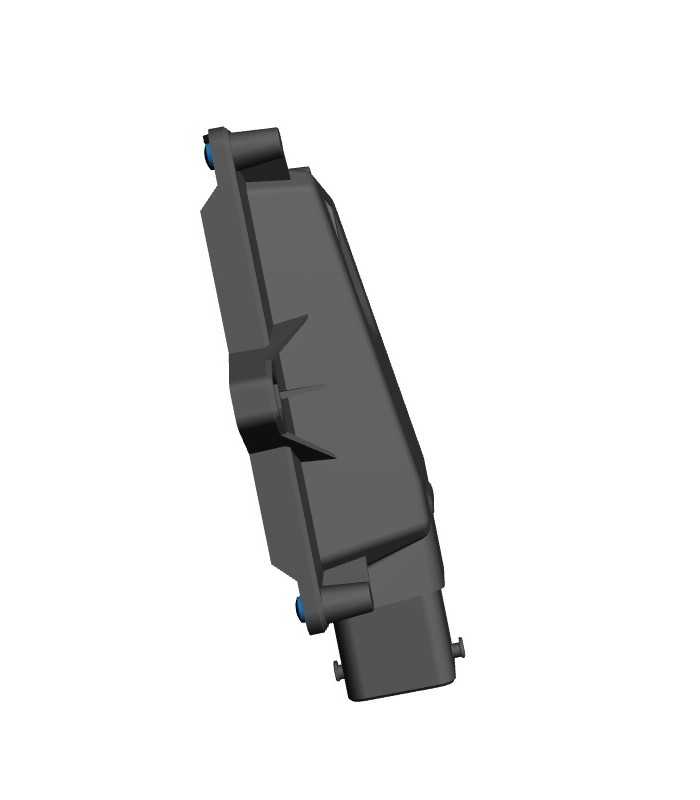

Bora S32 Ecu (2/3/4 cylinder)
Code, Description:
DE817075 Ecu Bora S32 OBD
DE817085 Ecu Bora S32
It has the task of collecting and processing all information for correct system management.
Listed below are some functions:
1. Control functioning of the gas injectors.
2. Interrupt and emulate functioning of the original petrol injectors during gas functioning towards the petrol ECU.
3. Exercise self-diagnosis, detecting and memorising faults only of the retrofit kit components that might affect the polluting emissions and automatically control fuelling change-over to petrol (switch-back).
4. Adopt the Safety Car strategy, closing the gas solenoid valves in case of accidental engine stop, even with panel switched on.
| TECHNICAL DATA SHEET (BORA S32 cod. 800DE817085) | |
| ITEM | DETAIL |
| Automotive microprocessor | 16 bit - 24 MHz |
| Watertight through immersion | Yes |
According to automotive norms for protections and inlet/outlet signals | Yes |
| Operating voltage | 8 V ÷ 16 V |
| Maximun Voltage | 24 V |
| Current in stand-by | <5 µA |
| Sensors and actuators diagnosis compatible with EOBD | No |
| It supports KWP2000 communication protocol | No |
| It supports CAN 2.0 communication | No |
| Adaptivity | No |
| EMC compliant | Yes |
| It pilots up to | 4 injectors |
| Integrated injectors cut and emulation | Yes |
| Approval | R67-01 - R110 e R10 |
| TECHNICAL DATA SHEET (BORA S32OBD cod. 800DE817075) | |
| ITEM | DETAIL |
| Automotive microprocessor | 16 bit - 24 MHz |
| Watertight through immersion | Yes |
According to automotive norms for protections and inlet/outlet signals | Yes |
| Operating voltage | 8 V ÷ 16 V |
| Maximun Voltage | 24 V |
| Current in stand-by | <5 µA |
| Sensors and actuators diagnosis compatible with EOBD | Si |
| It supports KWP2000 communication protocol | Si |
| It supports CAN 2.0 communication | Si |
| Adaptivity | Si |
| EMC compliant | Yes |
| It pilots up to | 4 injectors |
| Integrated injectors cut and emulation | Yes |
| Approval | R67-01 - R110 e R10 |
