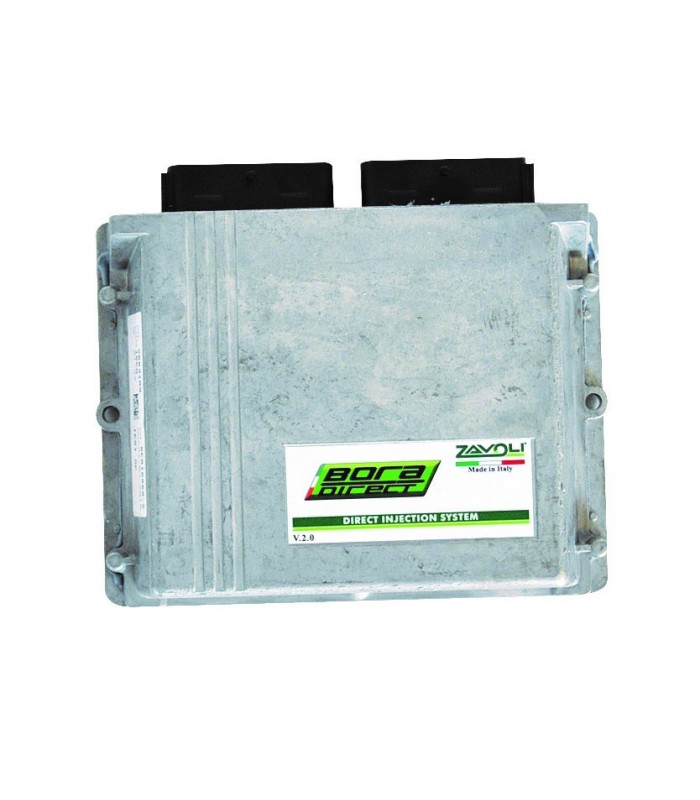

Bora Direct Ecu 6 Cylinder
Code, Description:
DE816051 Bora Direct Ecu (Model 51)
DE816061 Bora Direct Ecu (Model 61)
It has the task of collecting and processing all information for correct system management.
Listed below are some functions:
1. Control functioning of the gas injectors.
2. Interrupt and emulate functioning of the original petrol injectors during gas functioning towards the petrol ECU.
3. Exercise self-diagnosis, detecting and memorising faults only of the retrofit kit components that might affect the polluting emissions and automatically control fuelling change-over to petrol (switch-back).
4. Adopt the Safety Car strategy, closing the gas solenoid valves in case of accidental engine stop, even with panel switched on.
| TECHNICAL DATA SHEET | |
| ITEM | DETAIL |
| Automotive microprocessor | 16 bit - 64 MHz |
| Operating Temperature | -40 °C ÷ 90 °C |
| Watertight through immersion | Yes |
According to automotive norms for protections and inlet/outlet signals | Yes |
| Operating voltage | 6 V ÷ 16 V |
| Sensors and actuators diagnosis compatible with EOBD | Yes |
| It supports KWP2000 communication protocol | Yes |
| It supports CAN 2.0 communication | Yes |
| EMC compliant | Yes |
| It pilots up to | 6 injectors |
| Integrated injectors cut and emulation | Yes |
| Approval | R67-01 - R110 |
