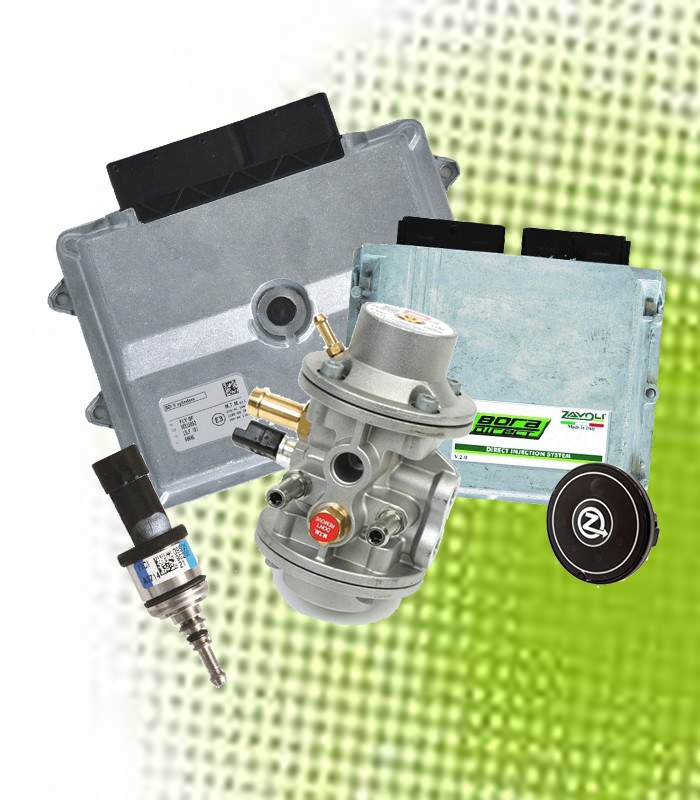

Bora Direct Kit 8 Cylinders
Z896KINJ-8_____
The BORA DIRECT systems represent Zavoli’s latest and very own solution for the most modern petrol direct injection engines. BORA LPG and CNG systems and kits are “in series” (or master & slave) types, and the most technologically advanced. As for all other BORA systems, gas injection occurs into the intake manifold, whereas petrol injection for direct injection engines occurs into the combustion chamber.
This type of installation allows to keep the same installation simplicity appreciated on other BORA systems, and to use the same mechanical components.
Pack content
1 x Brackets Kit
Code Description E05127012 Brackets and accessories kit 3-4 cylinder (ecu-filter-injectors)E05127014 Brackets and accessories kit 3-4 cylinder (ecu-injectors)E05127011 Brackets and accessories kit 5-6-8 cylinder (ecu-filter-injectors)E05127013 Brackets and accessories kit 5-6-8 cylinder (ecu-injectors)
1 x Zenith reducers
Code, Power Max and Regulation pressure: E010M0085Z Up to 230 Kw (312 Hp) - 1.9/2.0 bar
2 x IN03 MY09 Injectors Rail
Code, Description: 09SQ98P3N314B Injectors Rail Blue (normal)09SQ98P3M314B Injectors Rail Orange (max)09SQ98P3S314A Injectors Rail Yellow (super max)
